單位:mm

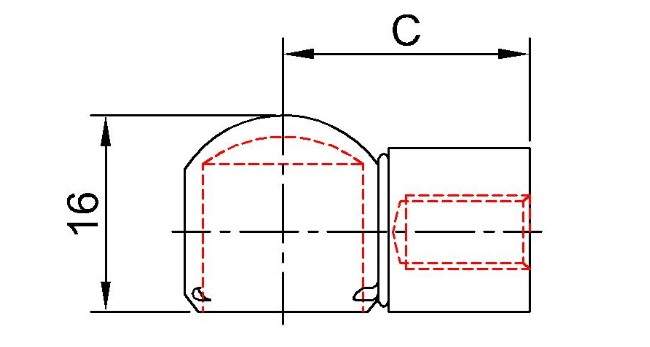

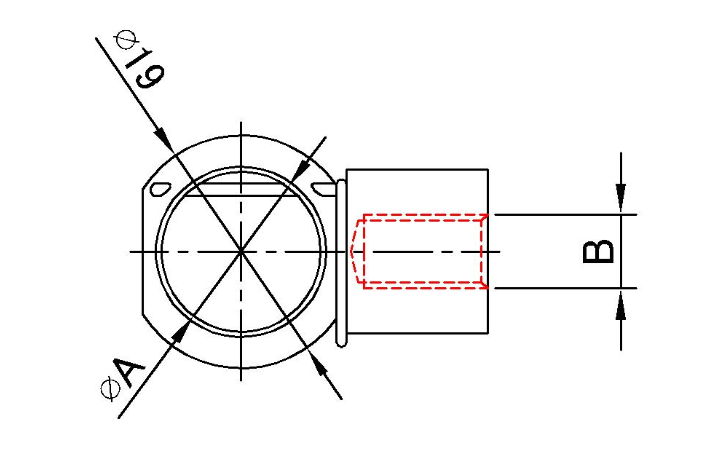

| 型號 | 孔徑 ( ∅A ) | 螺牙規格 ( B ) | 底部到中心 ( C ) | 材質 | 表面處理 |
| C1920M8 Black Zinc | 13 | M8X1.25 | 20 | 12L14 | 鈍化黑鋅 |
| C1925M8 Black Zinc | 25 | ||||
| C1930M8 Black Zinc | 30 | ||||
| C1935M8 Black Zinc | 35 | ||||
| C19S20M8 SUS303 | 20 | SUS303 | 振動研磨 | ||
| C19S25M8 SUS303 | 25 | ||||
| C19S30M8 SUS303 | 30 |

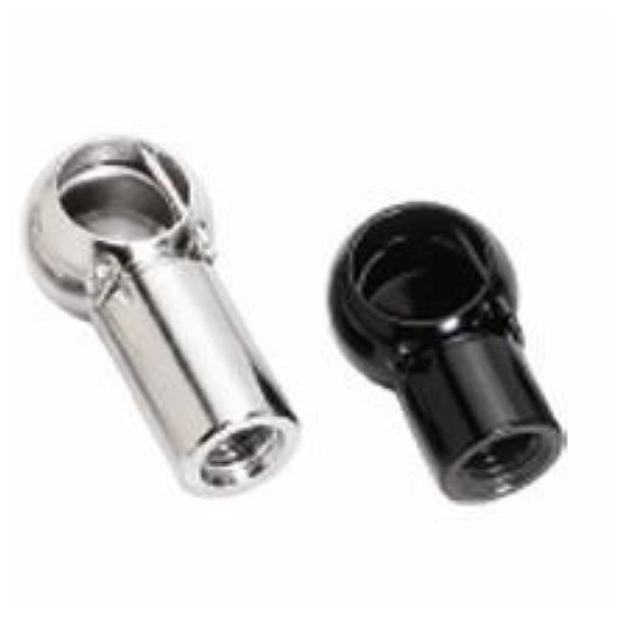

氣壓棒專用連接頭
C19系列(孔徑13mm)
C19系列(孔徑13mm)
詳細介紹
單位:mm
